Scenario: A Citrix Architect and a team of Workspacelab members met to discuss a Citrix...

Scenario: A Citrix Architect and a team of Workspacelab members met to discuss a Citrix ADC design project. They captured the following requirements from this design discussion:

All three (3) Workspacelab sites (DC, NOR, and DR) will have similar Citrix ADC configurations and design.

The external Citrix ADC MPX1 appliances will have Global Server Load Balancing (GSLB) configured and deployed in Active/Active mode.

ADNS service should be configured on the Citrix ADC to make it authoritative for domain nsg.workspacelab.com • In GSLB deployment, the DNS resolution should be performed to connect the user to the site with least network latency.

On the internal Citrix ADC, load balancing for StoreFront services, Citrix XML services, and Citrix Director services must be configured.

On the external Citrix ADC, the Gateway virtual server must be configured in ICA proxy mode.

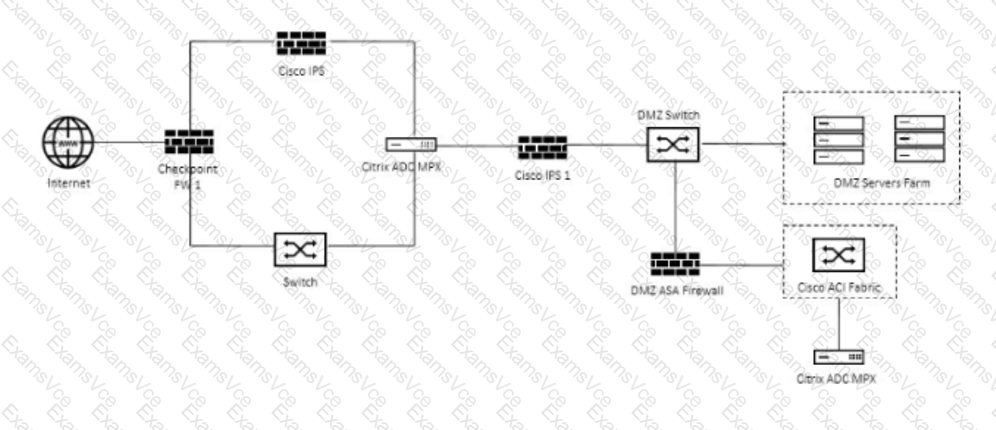

Click the Exhibit button to view the logical representation of the network.

On which firewall should the architect configure the access policy to permit the MEP communication between the sites?
