Refer to the exhibit.

The Time Domain Reflectometer (TDR) feature allows you to determine if a cable is OPEN or SHORT

when it is at fault.

To start the TDR test, perform this task:

Step 1 (Starts the TDR test): test cable-diagnostics tdr {interface {interface-number}}

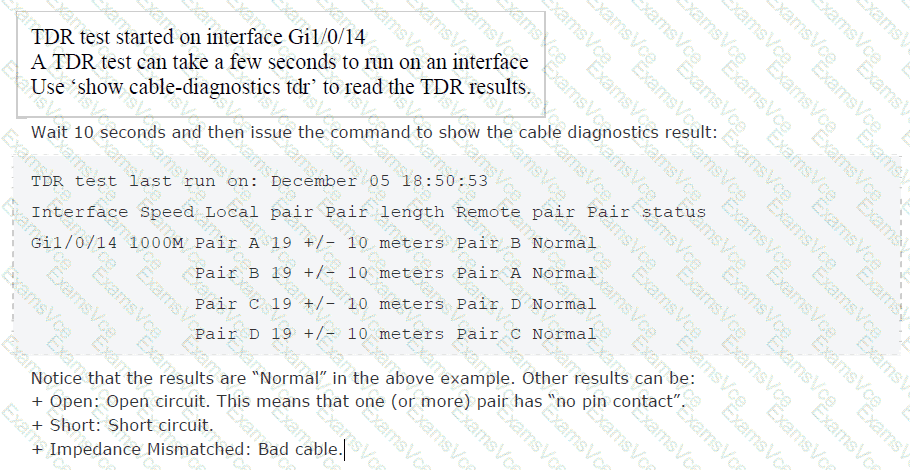

Step 2 (Displays the TDR test counter information): show cable-diagnostics

tdr {interface interface-number}

https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst9600/software/release/16-

11/configuration_guide/int_hw/b_1611_int_and_hw_9600_cg/checking_port_status_and_connectivity

pdf

Text, table Description automatically generated
