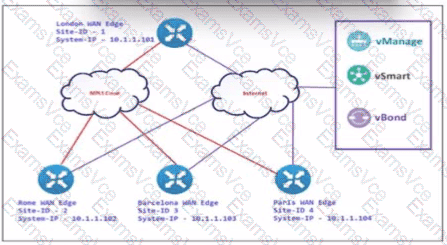

To configure Rome WAN Edge to prefer the MPLS cloud for reaching Paris WAN Edge, and use biz-internet as a backup, the policy must be set correctly to define the preference for each transport link.
Understanding TLOCs (Transport Locator): TLOCs represent the transport network paths (MPLS, Internet, etc.) available for SD-WAN. The preference values assigned to TLOCs determine their priority. A lower preference value indicates a higher priority.
Policy Configuration Analysis:
Option A: This option correctly configures the TLOC list for the system IPs representing the MPLS and biz-internet links with the appropriate preferences (500 for MPLS and 400 for biz-internet).
Other options either repeat the TLOC configuration incorrectly or reference wrong system IPs.
Policy Configuration:
policy
lists
tloc-list TLOC-1
tloc 10.1.1.102 color mpls encap ipsec preference 500
tloc 10.1.1.102 color biz-internet encap ipsec preference 400
Cisco SD-WAN Policy Framework Guide
Cisco SD-WAN Transport Locator Configuration Documentation
