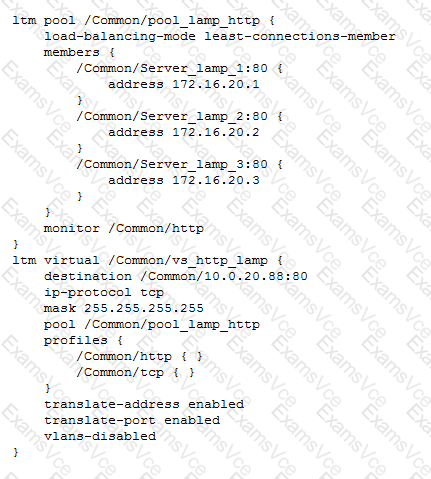

-- Exhibit –-- Exhibit --Refer to the exhibit.

F5 301b Question Answer

-- Exhibit –

-- Exhibit --

Refer to the exhibit.

Users report that a web application works incorrectly. Sometimes contextual data displayed on the web pages is accurate; other times it is inaccurate.

The LTM administrator looks at the connection table with a filter on one of the client IP addresses currently connected using the command "tmsh show sys connection cs-client-addr 10.0.20.1"

with the following results:

10.0.20.1:60048 10.0.20.88:80 10.0.20.1:60048 172.16.20.1:80 tcp 3 (tmm: 0)

10.0.20.1:60050 10.0.20.88:80 10.0.20.1:60050 172.16.20.3:80 tcp 3 (tmm: 0)

10.0.20.1:60047 10.0.20.88:80 10.0.20.1:60047 172.16.20.2:80 tcp 3 (tmm: 0)

10.0.20.1:60049 10.0.20.88:80 10.0.20.1:60049 172.16.20.1:80 tcp 3 (tmm: 0)

What is the solution to the problem?

Synchronize the clock of the LTM device with NTP.

Modify the load balancing method attached to the pool.

Set up an HTTP cookie insert profile in the virtual server.

Modify the setup of the monitor bound to the pool used by the application.
