Refer to the exhibit.

Cisco 350-501 Question Answer

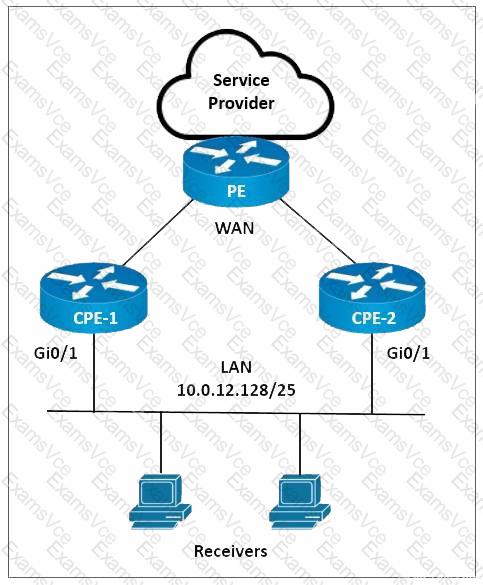

Refer to the exhibit. A network engineer is implementing multicast services on CPE-1 and CPE-2. CPE-1 must be configured as the preferred IGMP querier for the LAN segment. PIM-SM must be implemented on the LAN interfaces with an IGMP version that supports (*, G) joins only. Which configurations must the engineer implement on CPE-1 and CPE-2?

On CPE-1:

interface GigabitEthernet0/1

ip address 10.0.12.129 255.255.255.128

ip pim sparse-mode

ip igmp version 2

On CPE-2:

interface GigabitEthernet0/1

ip address 10.0.12.130 255.255.255.128

ip pim sparse-mode

ip igmp version 2

On CPE-1:

interface GigabitEthernet0/1

ip address 10.0.12.130 255.255.255.128

ip pim sparse-mode

ip igmp version 3

On CPE-2:

interface GigabitEthernet0/1

ip address 10.0.12.129 255.255.255. 128

ip pim sparse-mode

ip igmp version 3

On CPE-1:

interface GigabitEthernet0/1

ip address 10.0.12.130 255.255.255.128

ip pim sparse-mode

ip igmp version 2

On CPE-2:

interface GigabitEthernet0/1

ip address 10.0.12.129 255.255.255.128

ip pim sparse-mode

ip igmp version 2

On CPE-1:

interface GigabitEthernet0/1

ip address 10.0.12.129 255.255.255.128

ip pim sparse-mode

ip igmp version 3

On CPE-2:

interface GigabitEthernet0/1

ip address 10.0.12.130 255.255.255.128

ip pim sparse-mode

ip igmp version 3
