Troubleshooting LUN Discovery Issue in Granite Design

-- Exhibit –

-- Exhibit --

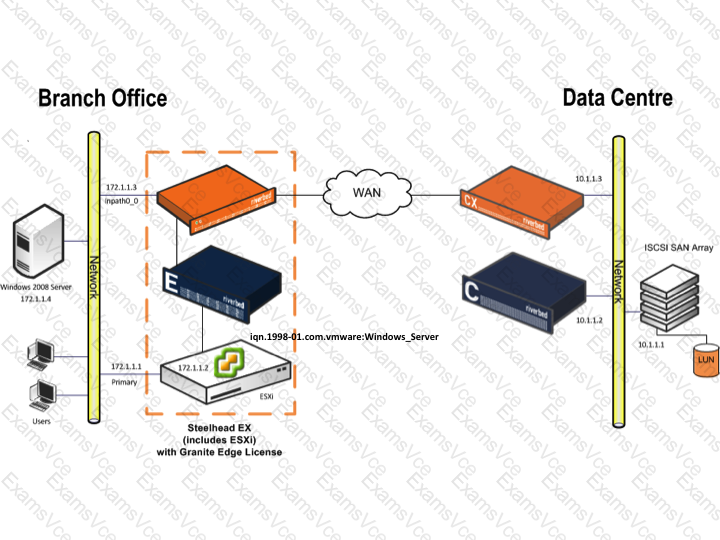

Refer to the exhibit. Customer is attempting to implement the following Granite Design, but for some reason the Windows Server in the Branch never manages to discover a LUN. Which of the following Granite configuration steps that they implemented would cause the problem? (Assume the basic networking is correct)

Step A.  Granite Edge is configured to add the Granite Core.

Step B.  Granite Core discovers Granite Edge and ISCSI SAN.

Step C.  ISCSI San Administrator maps LUN to Granite Core.

Step D.  Granite Core discovers LUN and projects it to Granite Edge.

Step E.  Granite Edge maps LUN to iqn.1998-01.com.vmware:Windows_Server.

Step F.  Windows Server connects to 172.1.1.1 via ISCSI client.
