A customer has relocated one of their Dell PowerEdge platform servers from their main data...

To reconfigure the iDRAC network settings with a new IP address, gateway, and DNS servers, follow these steps in the iDRAC interface:

Step-by-Step Guide:

Access iDRAC Network Settings:

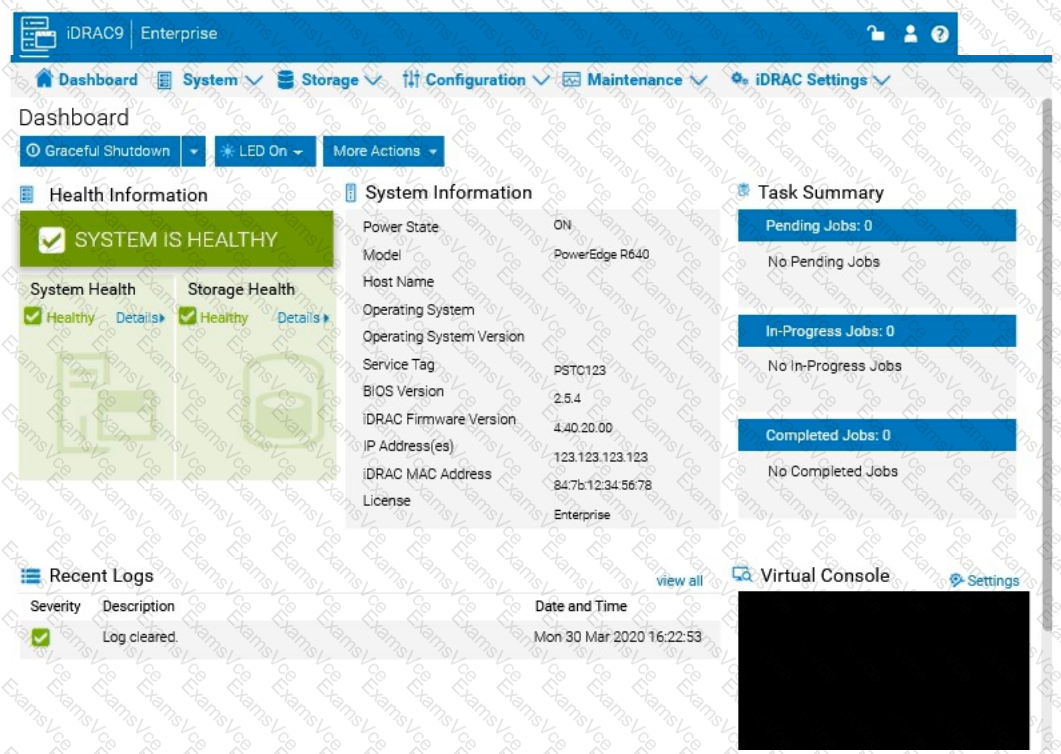

Log into the iDRAC interface.

Go to the iDRAC Settings tab in the top menu.

Select Network from the dropdown options. This will open the network configuration page.

Change IP Address and Subnet Mask:

In the Network settings, locate the section for IPv4 Settings.

Set the IP Address to 192.168.0.120.

For the Subnet Mask, since it’s a /24 CIDR, set it to 255.255.255.0.

Configure the Gateway:

In the same section, find the field for Default Gateway.

Enter the Gateway as 192.168.0.1.

Update DNS Server Information:

Scroll down to the DNS Server settings.

Enter DNS Server 1 as 10.10.0.1.

Enter DNS Server 2 as 10.10.0.2.

Apply the Settings:

After entering all the new network information, click on Apply or Save to confirm the changes.

The iDRAC interface may prompt for a restart to apply network changes. Follow any prompts as needed.

Verify the Configuration:

After applying the changes, check that the iDRAC is accessible at the new IP address 192.168.0.120.

Confirm that the gateway and DNS settings are properly configured by testing connectivity or accessing the iDRAC from a device within the same network segment.

By completing these steps, you will have reconfigured the iDRAC network settings for the new network segment, allowing remote management of the Dell PowerEdge server at the edge location.
