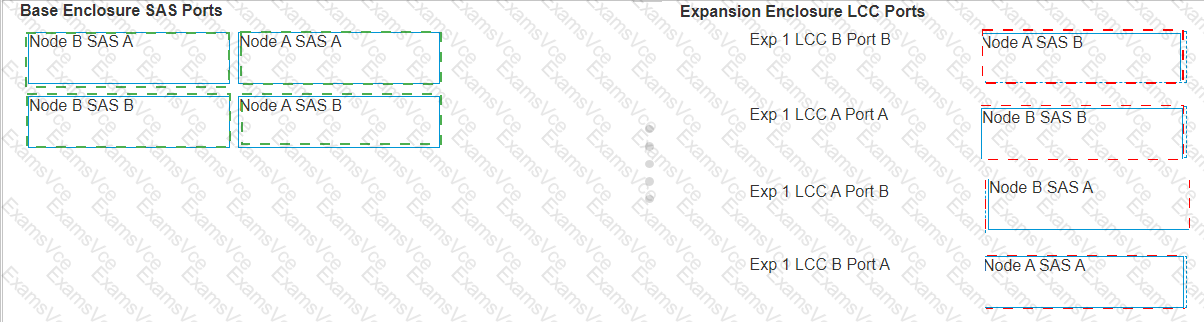

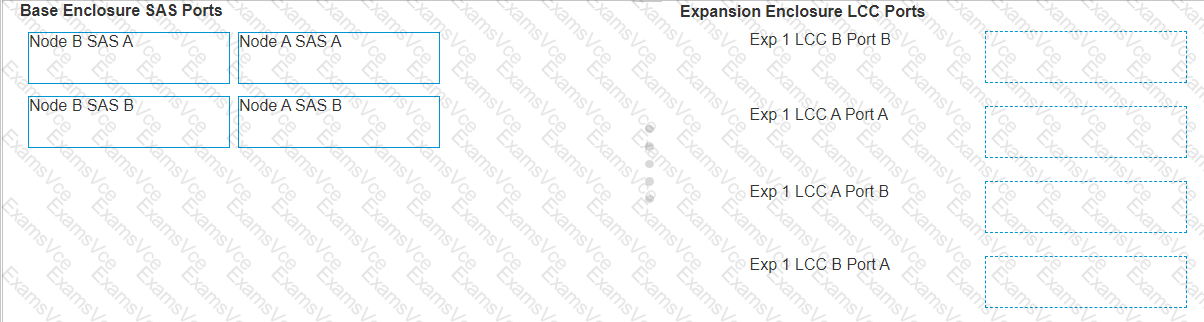

To match the base enclosure SAS ports in column A to their correspondingexpansion enclosure LCC ports in column B for a Dell PowerStore base enclosure connected to a single expansion enclosure, the correct configuration is:
Node B SAS A to Exp 1 LCC A Port B
Node A SAS A to Exp 1 LCC B Port A
Node B SAS B to Exp 1 LCC A Port A
Node A SAS B to Exp 1 LCC B Port B
Step by Step Comprehensive Detailed Explanation with References
Identify the SAS ports on the base enclosure and the LCC ports on the expansion enclosure.
Match the ports according to the configuration provided above.
Connect the cables between the corresponding SAS and LCC ports.
Secure the connections to ensure there is no loose cabling.
Verify the configuration using the PowerStore Manager to ensure all connections are recognized and functioning properly.
For detailed instructions, diagrams, and best practices, refer to the Dell PowerStore Installation and Service Guide1, as well as the Dell EMC PowerStore Quick Start Guide2. These documents provide essential information on the proper setup and maintenance of the storage system, ensuring optimal performance and reliability.
