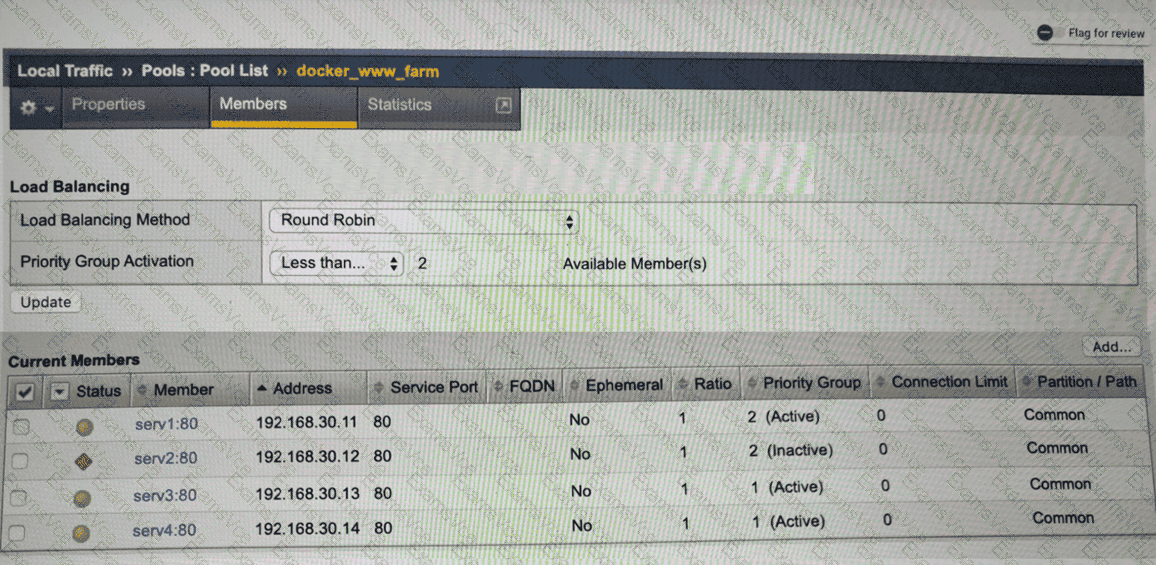

Refer to the exhibit above.

This question tests understanding ofPriority Group Activation (PGA)and how BIG-IP determines which pool members are eligible to receive traffic.

Key BIG-IP Priority Group Concepts:

Higher priority group numbers = higher priority

BIG-IP willonly send traffic to the highest priority groupthat meets thePriority Group Activationcondition

Lower priority groups areactivated only when the condition is met

Onlyavailable (green)members count toward the activation threshold

Configuration from the Exhibit:

Priority Group Activation:Less than 2 available members

Pool Members and Status:

Pool Member

Priority Group

Status

serv1

2

Active (available)

serv2

2

Inactive (down)

serv3

1

Active (available)

serv4

1

Active (available)

Step-by-Step Traffic Decision:

BIG-IP first evaluates thehighest priority group (Priority Group 2)

Priority Group 2 has:

serv1 → available

serv2 → unavailable

Total available members = 1

Activation rule isLess than 2 available members

Condition istrue(1 < 2)

BIG-IPactivates the next lower priority group (Priority Group 1)

Traffic is now sent to:

serv1 (Priority Group 2)

serv3 and serv4 (Priority Group 1)

Final Result:

Traffic is distributed toserv1, serv3, and serv4

Why the Other Options Are Incorrect:

A– Ignores activation of the lower priority group

B– serv4 is also active and eligible

C– serv2 is down and cannot receive traffic

Key Data Plane Concept Reinforced:

Priority Group Activation controls when lower-priority pool members are allowed to receive traffic, based strictly on the number ofavailable membersin the higher-priority group. In this case, the failure of one high-priority member caused BIG-IP toexpand traffic distributionto lower-priority members to maintain availability.

===========
