For BIG-IP to send or receive traffic on a VLAN, that VLAN must be bound to a physical interface or a trunk . Creating a VLAN object and a Self IP alone is not sufficient to establish data-plane connectivity.

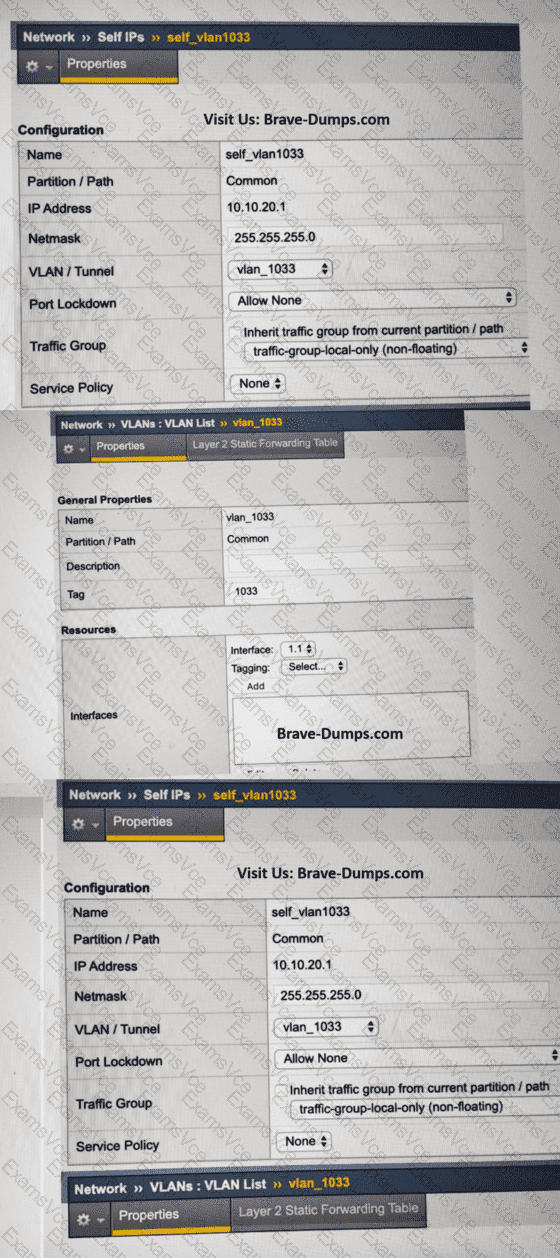

From the exhibit:
The VLAN ( vlan_1033 ) exists and has a tag defined.
A Self IP is configured and associated with the VLAN.
However, traffic cannot reach servers on that VLAN.
This indicates a Layer 2 connectivity issue , not a Layer 3 or HA issue.
Why assigning a physical interface fixes the problem:
BIG-IP VLANs do not carry traffic unless they are explicitly attached to:
A physical interface (e.g., 1.1), or
A trunk
Without an interface assignment, the VLAN is effectively isolated and cannot transmit or receive frames, making servers unreachable regardless of correct IP addressing.
Why the other options are incorrect:
A. Set Port Lockdown to Allow All Port Lockdown controls which services can be accessed on the Self IP (management-plane access), not whether BIG-IP can reach servers on that VLAN.
B. Change Auto Last Hop to enabled Auto Last Hop affects return traffic routing for asymmetric paths. It does not fix missing Layer 2 connectivity.
D. Create a Floating Self IP address Floating Self IPs are used for HA failover. They do not resolve reachability issues on a single device when the VLAN itself is not connected to an interface.
Conclusion:
The servers are unreachable because the VLAN has no physical interface assigned . To restore connectivity, the BIG-IP Administrator must assign a physical interface (or trunk) to the VLAN , enabling Layer 2 traffic flow.
