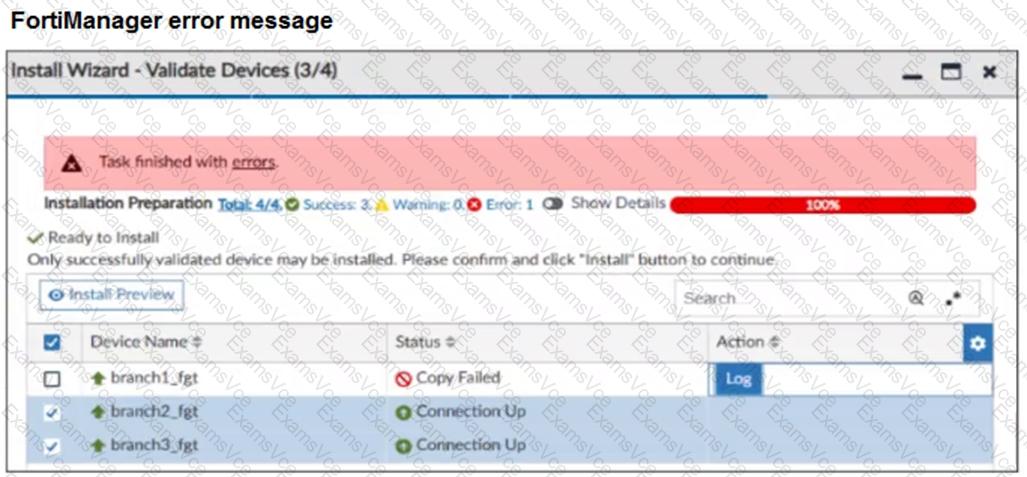

Refer to the exhibits.

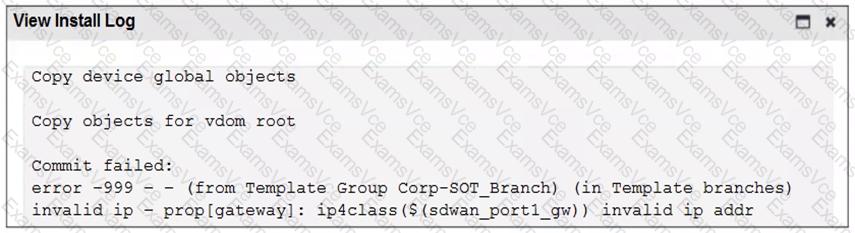

Specify the gateway of the SD-WAN member port1 with an IP address or use the default value → The error log shows invalid ip – prop[gateway]: ip4class(${sdwan_port1_gw}) invalid ip addr, meaning the variable ${sdwan_port1_gw} does not have a valid mapping. Assigning a valid IP address or default value for the gateway resolves this error.

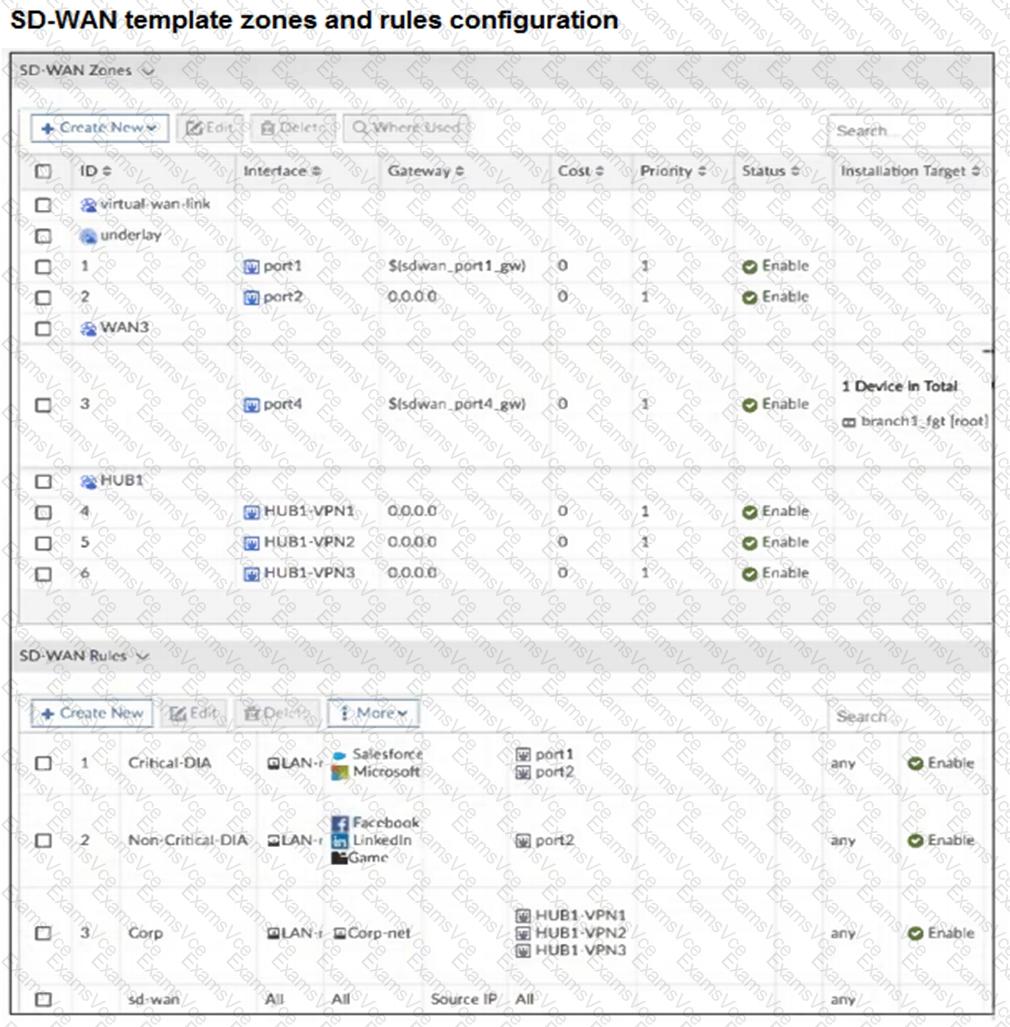

Review the per-device mapping configuration for metadata variables → The issue is tied to how the metadata variable ${sdwan_port1_gw} is mapped for branch1_fgt. If this device does not have the variable properly defined in per-device mapping, the configuration will fail. Correcting the mapping ensures that the install works.
