On the network shown in the figure, HOST A and HOST B are required to...

Understanding the Network Diagram

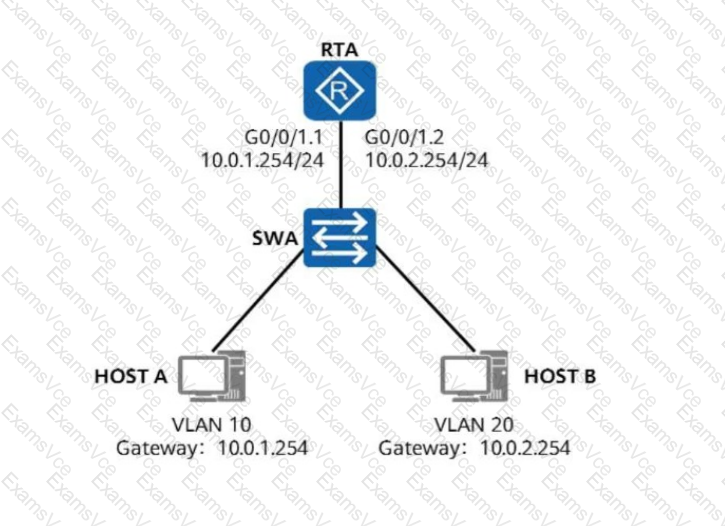

Host A is in VLAN 10 with a gateway of 10.0.1.254.

Host B is in VLAN 20 with a gateway of 10.0.2.254.

The router (RTA) has two sub-interfaces:

G0/0/1.1 (10.0.1.254/24) for VLAN 10

G0/0/1.2 (10.0.2.254/24) for VLAN 20

The switch (SWA) is using VLAN trunking to forward packets to the router, requiring 802.1Q encapsulation.

One-Armed Routing (Router-on-a-Stick) is being used, meaning a single physical interface (G0/0/1) handles multiple VLANs using sub-interfaces.

Analyzing the Answer Choices

Option A (dot1q termination vid 20) → Incorrect

This command would be configured on G0/0/1.2, not G0/0/1.1.

Option B (dot1q termination vid 30) → Incorrect

VLAN 30 is not part of this topology.

Option C (dot1q termination vid 10) → Correct

Since G0/0/1.1 corresponds to VLAN 10, the correct command is dot1q termination vid 10.

Option D (dot1q termination vid 1) → Incorrect

VLAN 1 is usually the default VLAN, which is not relevant here.

Thus, the correct answer is C (dot1q termination vid 10).
