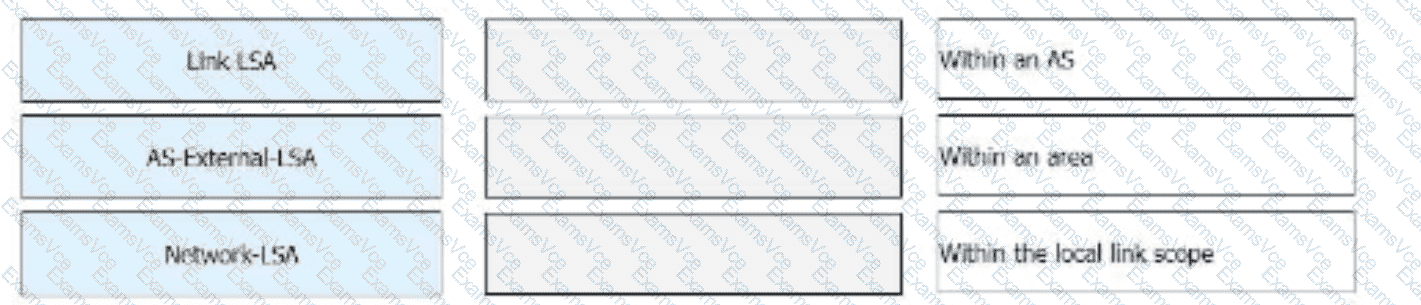

Drag the OSPFv3 LSAs to map them to their corresponding transmission ranges.

A screenshot of a computer AI-generated content may be incorrect.

InOSPFv3, each LSA type has adefined flooding scope:

Link-LSA (Type 8)

Advertisedonly on the local link

Contains router’s link-local address and prefixes

Scope:Within the local link scope✅

AS-External-LSA (Type 5)

Used to advertiseexternal routes from outside the AS

Flooded across theentire autonomous system, except stub/NSSA areas

Scope:Within an AS✅

Network-LSA (Type 2)

Generated by theDesignated Router (DR)

Describes all routers on a broadcast or NBMA segment

Floodedwithin the originating area

Scope:Within an area✅

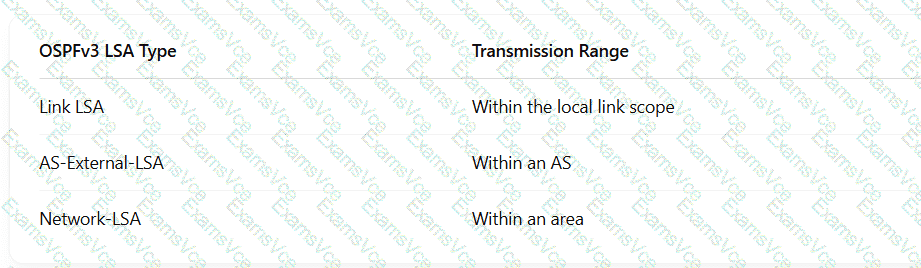

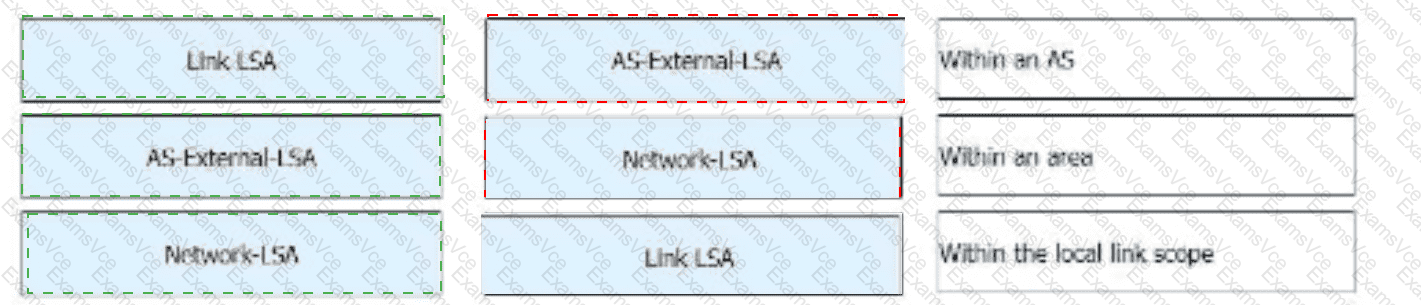

Correct Mappings:

Link LSA→Within the local link scope

AS-External-LSA→Within an AS

Network-LSA→Within an area
