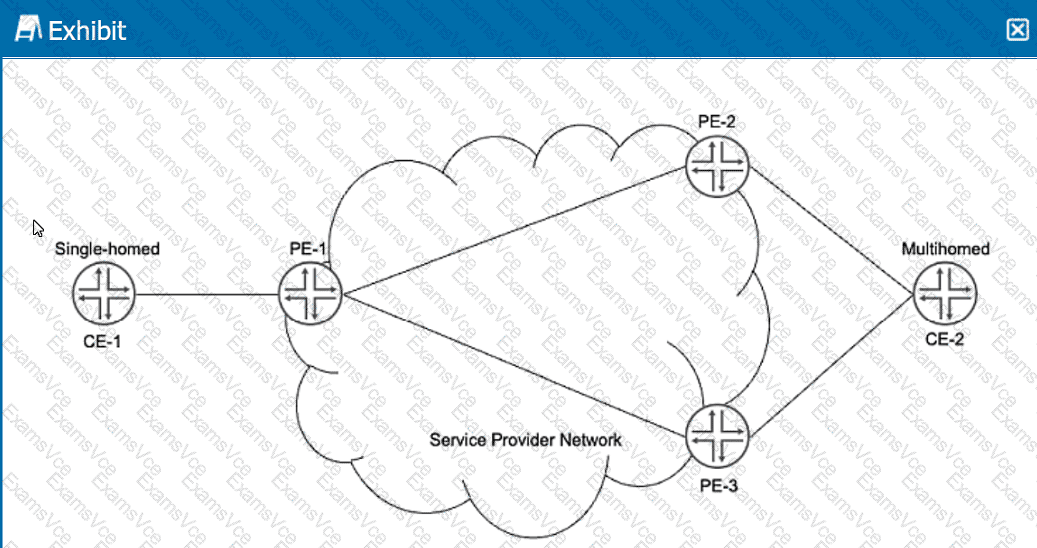

In the context of Ethernet VPN (EVPN) and the behavior described in the exhibit, it's essential to understand the different EVPN route types and their specific functionalities. Here, CE-2 is receiving unicast traffic on both of its multihomed links to PE-2 and PE-3, but broadcast traffic is received only on one of these links.
**Explanation of EVPN Route Types**:
1. **Type 1 (Ethernet Auto-Discovery Routes)**:
- These routes are used for auto-discovery of Ethernet segments and for advertising VLAN membership.
- They do not directly influence the behavior described in the question.
2. **Type 2 (MAC/IP Advertisement Routes)**:
- These routes are used to advertise MAC addresses and IP-to-MAC bindings within the EVPN.
- They handle unicast traffic forwarding and are crucial for populating the MAC address tables on the PE devices.
- While important, they do not explain the selective broadcast behavior.
3. **Type 3 (Inclusive Multicast Ethernet Tag Routes)**:
- These routes are used to build multicast distribution trees for delivering broadcast, unknown unicast, and multicast (BUM) traffic.
- They ensure that BUM traffic is sent only once per Ethernet segment, preventing duplicate frames from being sent to multihomed CEs.
- This aligns with the behavior described where CE-2 receives broadcast traffic on only one link to prevent duplication.
4. **Type 4 (Ethernet Segment Routes)**:
- These routes are used to advertise the presence of an Ethernet segment and are crucial for Designated Forwarder (DF) election processes in multihoming scenarios.
- While relevant to multihoming, they are not directly responsible for the selective broadcast behavior.
**Conclusion**:
The behavior described, where CE-2 receives broadcast traffic on only one of its multihomed links, is controlled by Type 3 routes. These routes are specifically designed to handle inclusive multicast and broadcast traffic efficiently in EVPN environments, ensuring that such traffic is not duplicated across multiple links to the same CE.
**References**:
- Juniper Networks EVPN Documentation: [EVPN Overview](https://www.juniper.net/documentation/en_US/junos/topics/concept/evpn-overview.html)
- RFC 7432, BGP MPLS-Based Ethernet VPN: [RFC 7432](https://tools.ietf.org/html/rfc7432) provides detailed descriptions of EVPN route types and their functions.
- Junos OS EVPN Configuration Guide: [Junos OS EVPN Configuration Guide](https://www.juniper.net/documentation/en_US/junos/topics/topic-map/evpn.html)
