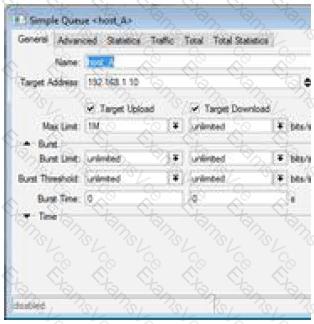

What does this simple queue do (check the image)?

The “Max Limit” value in MikroTik Simple Queues defines the maximum allowed bandwidth. In this case:

Target Address: 192.168.1.10

Target Upload = 1M → The host can upload at a maximum of 1 Mbps

Target Download = unlimited → No restriction on download

This does not “guarantee” bandwidth — it enforces a ceiling. A guaranteed rate would require "Limit-at" to be set.

Evaluation:

A.❌This queue limits, it does not guarantee a minimum bandwidth.

B.❌Download is set to unlimited — no limitation.

C.✅Upload is limited to 1 Mbps — correct.

D.❌Download rate is unlimited — no guarantee or limit.

MTCNA Course Manual – Simple Queue Explanation:

“Max-limit sets the maximum throughput for upload/download. It’s a ceiling, not a guarantee.”

René Meneses Guide – Simple Queues Explained:

“In this case, upload is capped at 1M. No burst or download limit is applied.”

Terry Combs Notes – Queue Properties:

“Always distinguish between 'limit-at' (minimum guarantee) and 'max-limit' (maximum cap).”
