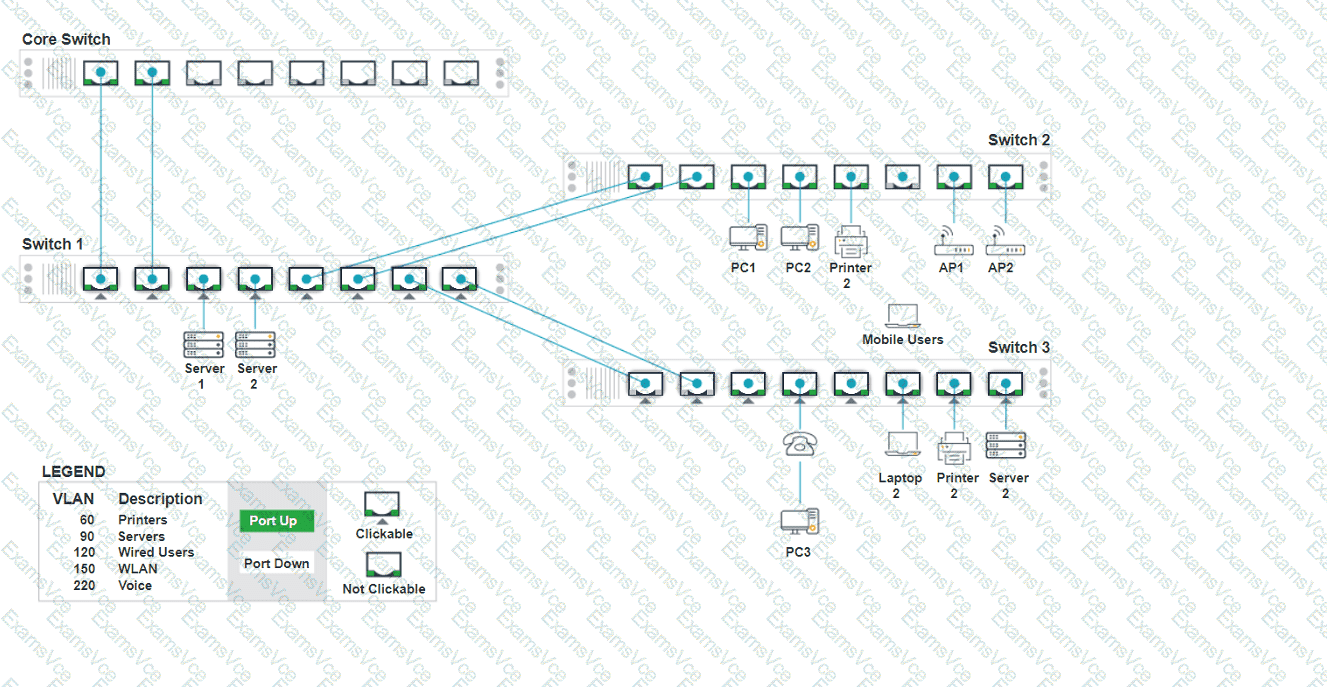

To provide a complete solution for configuring the access layer switches, let's proceed with the following steps:
Identify the correct VLANs for each device and port.
Enable necessary ports and disable unused ports.
Configure fault-tolerant connections between the switches.
Port 1 Configuration (Uplink to Core Switch)
Status: Enabled
LACP: Enabled
Speed: 1000
Duplex: Full
VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220
Port 2 Configuration (Uplink to Core Switch)
Status: Enabled
LACP: Enabled
Speed: 1000
Duplex: Full
VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220
Port 3 Configuration (Server Connection)
Status: Enabled
LACP: Disabled
Speed: 1000
Duplex: Full
VLAN Configuration: Untagged for VLAN90 (Servers)

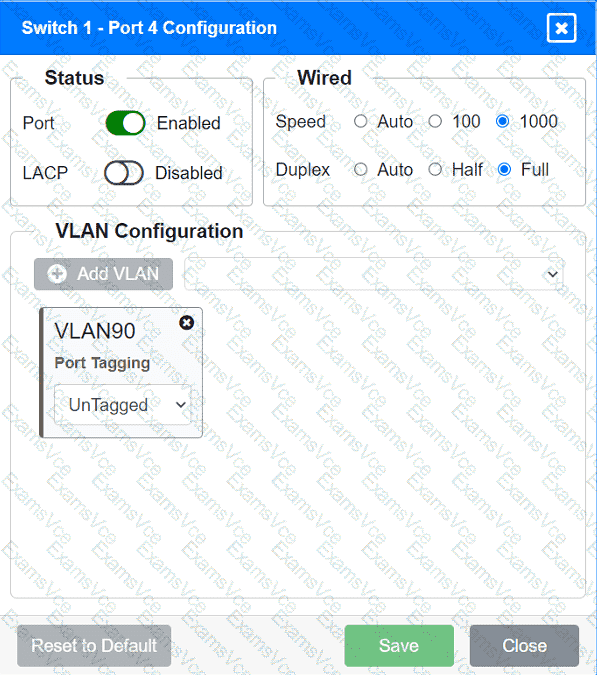

Port 4 Configuration (Server Connection)
Status: Enabled
LACP: Disabled
Speed: 1000
Duplex: Full
VLAN Configuration: Untagged for VLAN90 (Servers)

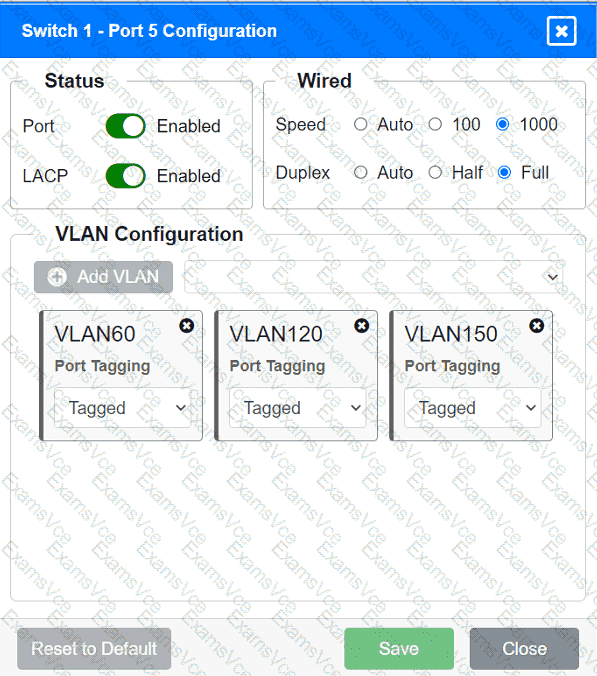

Port 5 Configuration (Wired Users and WLAN)
Status: Enabled
LACP: Enabled
Speed: 1000
Duplex: Full
VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150

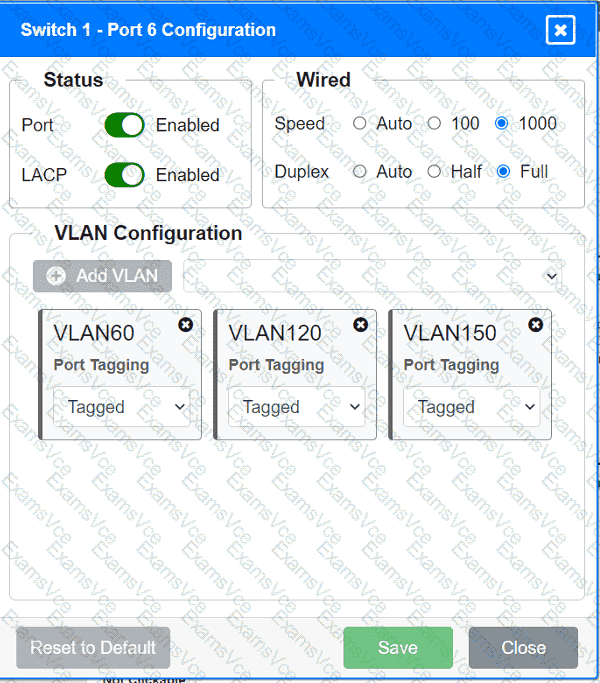

Port 6 Configuration (Wired Users and WLAN)
Status: Enabled
LACP: Enabled
Speed: 1000
Duplex: Full
VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150
Port 7 Configuration (Voice and Wired Users)
Status: Enabled
LACP: Enabled
Speed: 1000
Duplex: Full
VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220
Port 8 Configuration (Voice, Printers, and Wired Users)
Status: Enabled
LACP: Enabled
Speed: 1000
Duplex: Full
VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220

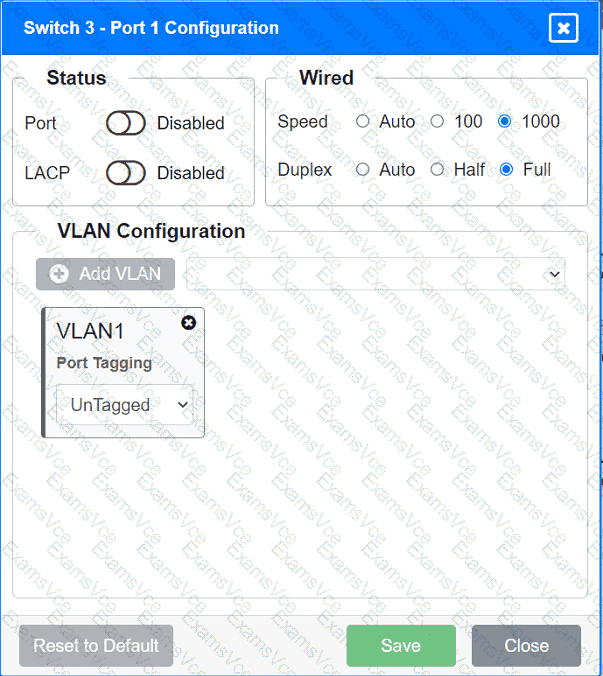

Port 1 Configuration (Unused)
Status: Disabled
LACP: Disabled
Port 2 Configuration (Unused)
Status: Disabled
LACP: Disabled
Port 3 Configuration (Connection to Device)
Status: Enabled
LACP: Disabled
Speed: 1000
Duplex: Full
VLAN Configuration: Untagged for VLAN1 (Default)
Port 4 Configuration (Connection to Device)
Status: Enabled
LACP: Disabled
Speed: 1000
Duplex: Full
VLAN Configuration: Untagged for VLAN1 (Default)
Port 5 Configuration (Connection to Device)
Status: Enabled
LACP: Disabled
Speed: 1000
Duplex: Full
VLAN Configuration: Untagged for VLAN1 (Default)
Port 6 Configuration (Connection to Device)
Status: Enabled
LACP: Disabled
Speed: 1000
Duplex: Full
VLAN Configuration: Untagged for VLAN1 (Default)
Port 7 Configuration (Connection to Device)
Status: Enabled
LACP: Disabled
Speed: 1000
Duplex: Full
VLAN Configuration: Untagged for VLAN1 (Default)
Ports 1 and 2 on Switch 1 are configured as trunk ports with VLAN tagging enabled for all necessary VLANs.
Ports 3 and 4 on Switch 1 are configured for server connections with VLAN 90 untagged.
Ports 5, 6, 7, and 8 on Switch 1 are configured for devices needing access to multiple VLANs.
Unused ports on Switch 3 are disabled.
Ports 3, 4, 5, 6, and 7 on Switch 3 are enabled for default VLAN1.
Core Switch Ports should be configured as needed for uplinks to Switch 1.
Ensure LACP is enabled for redundancy on trunk ports between switches.
By following these configurations, each device will access only its correctly associated network, unused switch ports will be disabled, and fault-tolerant connections will be established between the switches.
