Comprehensive and Detailed In-Depth Explanation:

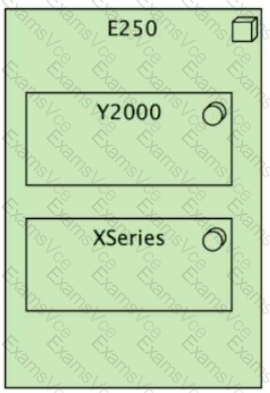

ThisArchiMate Technology Layer diagramrepresents aserver configuration, where:
E250is modeled as aTechnology Node(a physical or virtual server).
Y2000 and XSeriesare contained withinE250, indicating that they aresoftware components running on this node.
Therelationship suggests that Y2000 is middleware and XSeries is an operating system.
InArchiMate 3.2, aTechnology Noderepresents acomputing platform that hosts software elements like applications, middleware, and operating systems.
Analysis of Answer Choices:
✅A. The E250 is an assembly of Y2000 processing units and XSeries high-speed memory.→❌Incorrect
E250 is a Technology Node (server), not just hardware components.
Y2000 and XSeries are software components, not processing units or memory modules.
✅B. The E250 node is running internally-developed Y2000 software for enterprise risk analysis and is fitted with an XSeries custom disk array.→❌Incorrect
There is no indication that XSeries is a disk array; rather, it appears to be software.
The diagram shows Y2000 and XSeries as software components inside E250, not as hardware attachments.
✅C. The E250 device is fitted with the Y2000 software application and the XSeries communication middleware.→❌Incorrect
Middleware typically supports application integration, while operating systems manage hardware resources.
The diagram suggests that XSeries functions as an OS, not middleware.
✅D. The E250 node is running Y2000 middleware and the XSeries operating system.→✅Correct Answer
This matches typical server configurations where a middleware application runs on top of an operating system.
Y2000 (middleware) handles enterprise risk analysis functions, while XSeries (operating system) manages the E250 server.
ArchiMate 3.2 Specification, Section 6.6.5, defines Middleware as software that facilitates integration between applications and the underlying OS.
Final Answer:✅D. The E250 node is running Y2000 middleware and the XSeries operating system.
References:
ArchiMate 3.2 Specification: Sections 6.6.1 (Technology Nodes), 6.6.5 (Middleware), and 6.6.6 (Operating Systems).
Archi User Guide: Modeling technology infrastructure and server configurations.
