Choose the correct answer

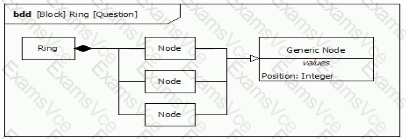

Given the following bdd for a token ring network, in which a token flows from node n to node n+1 except that when it reaches the node at the maximum position n flows to the node at the minimum position.

Which ibd correctly models this behavior?

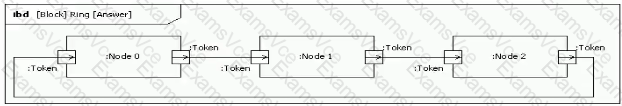

A)

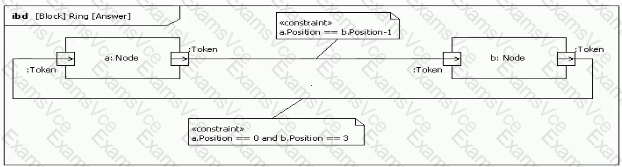

B)

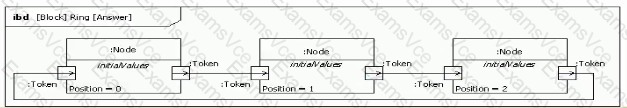

C)

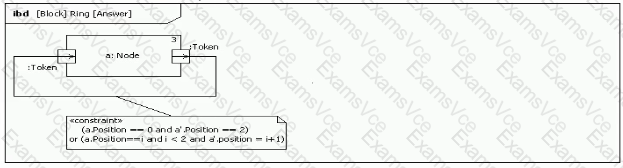

D)
