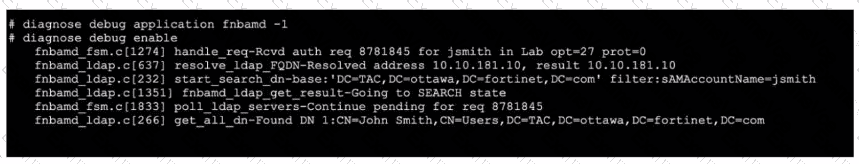

The exhibit shows these key lines:
handle_req-Rcvd auth req ... for jsmith in Lab
start_search_dn-base: ' DC=TAC,DC=ottawa,DC=fortinet,DC=com ' filter:sAMAccountName=jsmith
get_all_dn-Found DN 1:CN=John Smith,CN=Users,DC=TAC,DC=ottawa,DC=fortinet,DC=com
The study guide explicitly shows the same LDAP real-time debug pattern and says the request line includes the LDAP server object name:
handle_req-Rcvd auth req ... for jsmith in Lab ...
That supports A : Lab is the configured LDAP server name being used for this authentication request.
For the LDAP flow stage, the study guide states:
“An fnbamd_ldap_build_dn_search_req-base message indicates that FortiGate is performing step two: searching for the user in the LDAP tree.” It also says that if the LDAP server finds the user, the output shows the user’s full DN.
That matches the exhibit’s start_search_dn-base ... filter:sAMAccountName=jsmith and Found DN ... CN=John Smith... lines, so D is correct.
Why the other options are wrong:
B is wrong because the exhibit shows FortiOS has found the user DN CN=John Smith,..., but that does not mean the user is already authenticating with that DN in this step. The study guide says this DN is discovered in step 2 , and only in step 3 does FortiGate bind using the user DN.
C is wrong because the exhibit is showing step 2 (Search Request) , not step 3 (Bind Request) . The study guide separates these steps clearly and shows step 3 with fnbamd_ldap_build_userbind_req-Trying DN ... and __ldap_build_bind_req-Binding to ' CN=John Smith,... '
