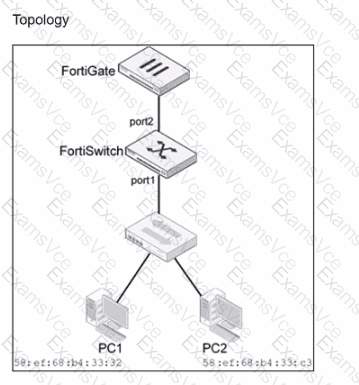

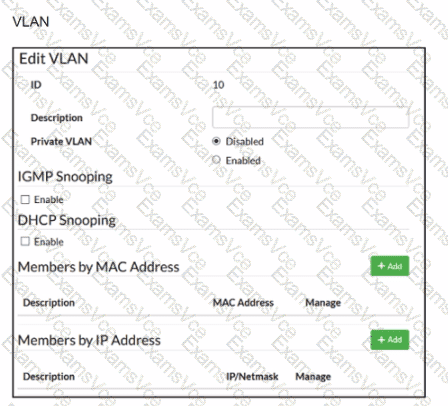

Refer to the exhibitsTraffic arriving on port2 on FortiSwitch is tagged with VLAN ID 10...

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the way a FortiSwitch handles VLAN tags on egress (outgoing) traffic is governed by the port ' sNative VLANand itsUntagged VLAN list. When traffic for VLAN 10 arrives at port2 (the uplink) and is forwarded to port1, the switch must determine whether to strip the 802.1Q tag before transmission.

Untagged VLAN List (Option B):The documentation explicitly states that the " untagged VLAN list " specifies VLANs for which the port will transmit frameswithout the VLAN tag. By adding VLAN ID 10 to the untagged VLANs on port1, any traffic belonging to VLAN 10 will have its tag stripped at the egress point, ensuring PC1 receives a standard untagged frame.

Configuration Logic (Option C):In FortiSwitch management, moving a VLAN from the " Allowed " list (which typically implies tagged delivery) to the " Untagged " list on a specific interface forces the switch to perform the tag-stripping action. This effectively converts the port from a trunked behavior for that VLAN to an " access " or untagged behavior.

Regarding the incorrect options:Option A (MAC-based assignment)is used primarily foringress classification. While it can assign a device to a VLAN when it sends trafficintothe switch, the documentation notes that by default, egress packets for MAC-based VLANs still include the tag unless the untagged list is configured.Option D(Private VLANs) is a security feature for isolating traffic between ports within the same VLAN and does not address the physical tagging requirements of the endpoint.
