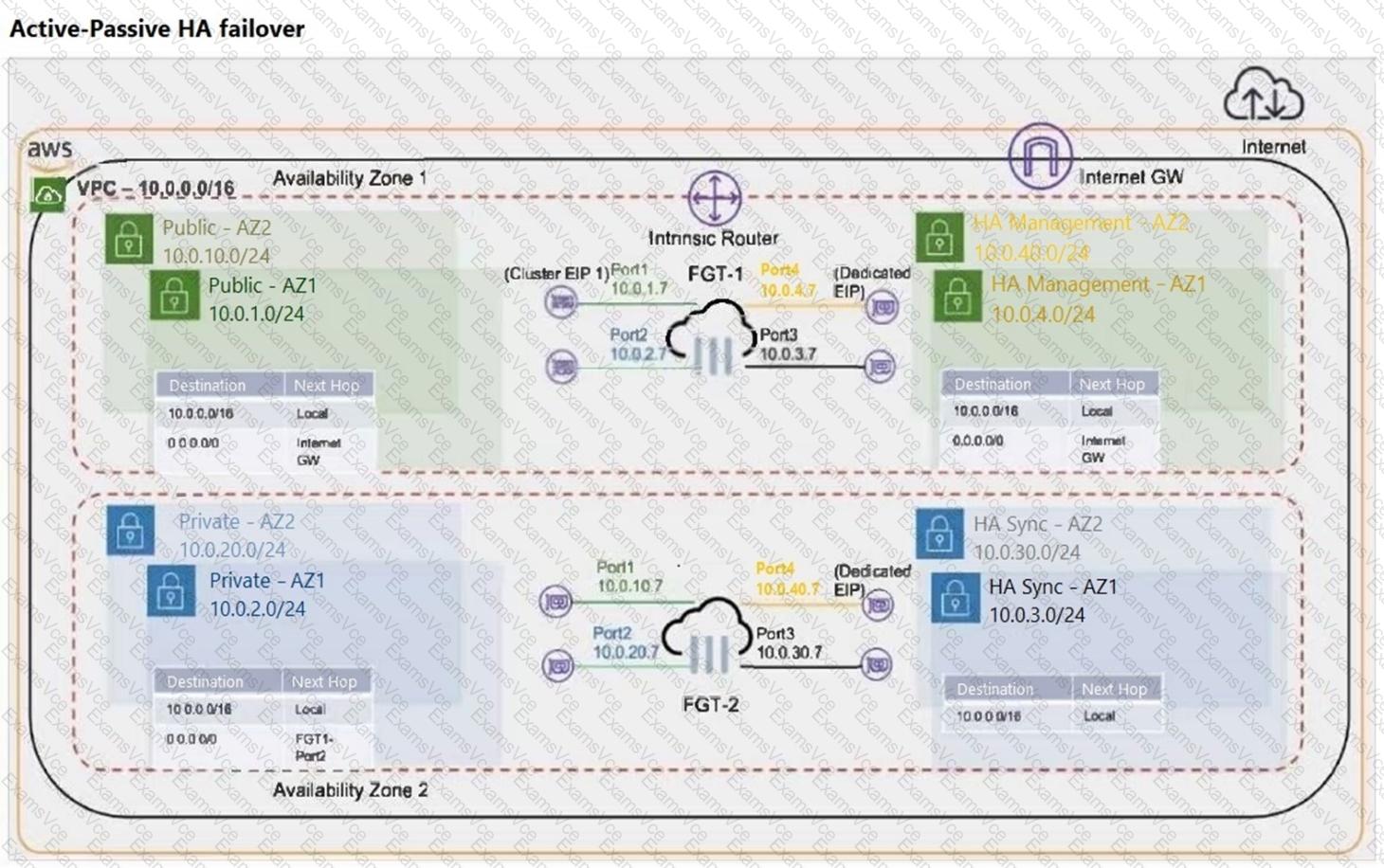

Refer to the exhibit.

Cluster Elastic IP Address (EIP) Movement:

During a failover in an active-passive (A-P) cluster, the Elastic IP (EIP) associated with the active FortiGate instance (FGT-1) needs to be moved to the passive instance (FGT-2), which becomes the new active instance. This ensures that the traffic directed to the EIP is now handled by FGT-2 (Option A).

Secondary IP Address Movement:

The secondary IP address on Port2 of the current active instance (FGT-1) is moved to the same port on the new active instance (FGT-2). This step is crucial to ensure seamless network traffic redirection and connectivity for the services relying on that IP address (Option B).

Other Options Analysis:

Option C is incorrect because the static route modification mentioned is not directly related to the failover process described.

Option D is incorrect because no additional route needs to be added to the HA Sync AZ2 subnet route table to forward traffic to the Internet Gateway during a failover.

References:

FortiGate HA Configuration Guide: FortiGate HA

AWS Elastic IP Documentation: Elastic IP
